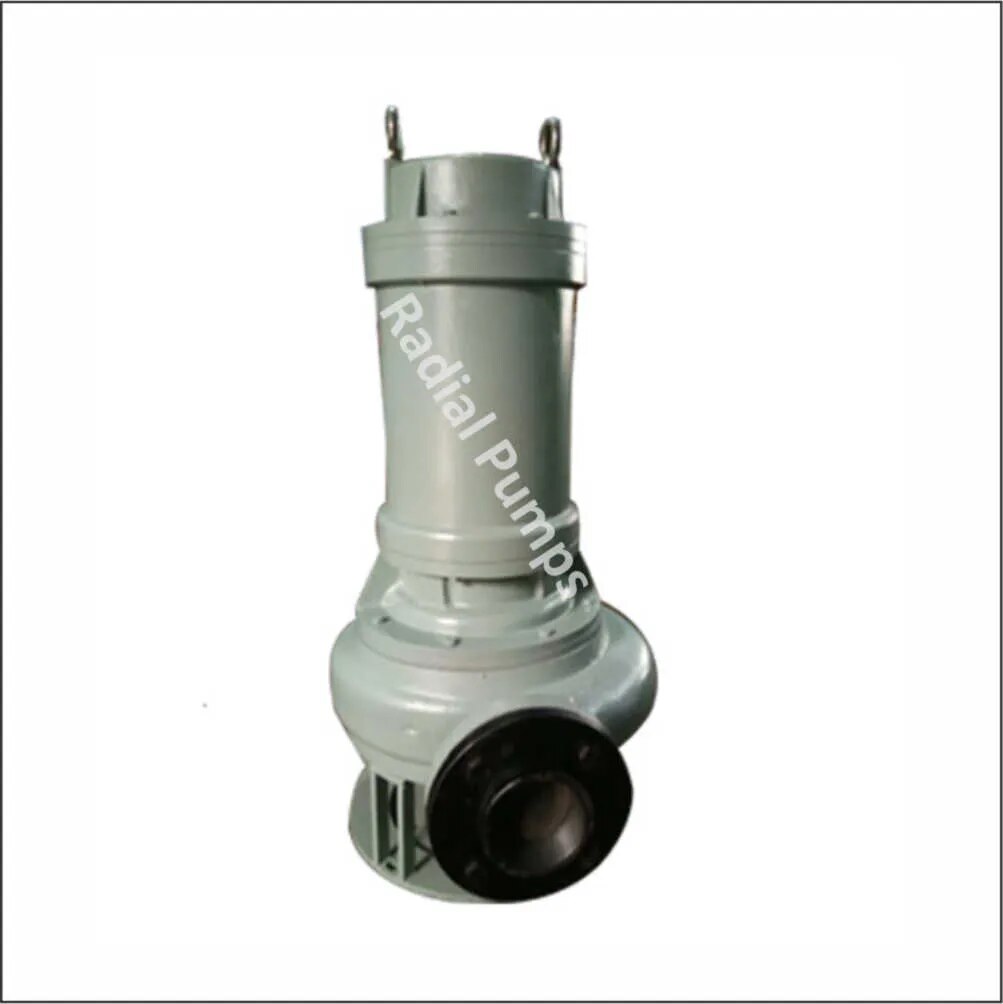

Low Speed Heavy Duty Sewage Submersible Non Clog Pump
Description
Operating Range
Capacity : Up to 2000 M3/hr
Head : Up to 70 mtr
Temperature : Up to 45°C
HP : 3 to 300
Seed : 1440 / 960 / 750 rpm
Delivery Size : 50 mm to 350 mm
Solid Size : 25 mm to 130 mm
Connection : DOL / SD / ATS
Voltage & Phase : 415 V, 3 Phase
Insulation/Protection : F’ Class / ‘H’ Class/ IP 68
Motor : 4, 6, 8 pole continues duty dry type squirrel cage induction Motor
Cable : PVC Insulated Double heated Copper Conductor Flexible Cable
Mechanical Seal : Bi-Directional Twin Mechanical Seal with Various face combination looking to the application.
Material of Construction
C. I, C.S, S.S.
Optional Parts
Impeller, Casing, Wear plate with various
M.O.C. Bronze, CF8, CF8M, CD4MCU etc…
Applications
• Muddy water transfer
• Swimming pool.
• Dewatering of ponds, basement of huge building
• Power Plant, ETP, STP
• Used in hotel, hospitals, railways, dairy, chemical ind, sugar, steel, cement, food beverages etc…
Features
• These pumps are wet-installed type submersible motor pumps with non-clog impeller. Pumps have a robust design for continuous duty operation for various slurry applications.
• Handling of all types of abrasive or aggressive waste water in water & waste water engineering as well as industry, especially untreated sewage containing long fibers & solid substances, fluids containing gas/air, as well as raw, activated & digested sludge; sea water desalination.
