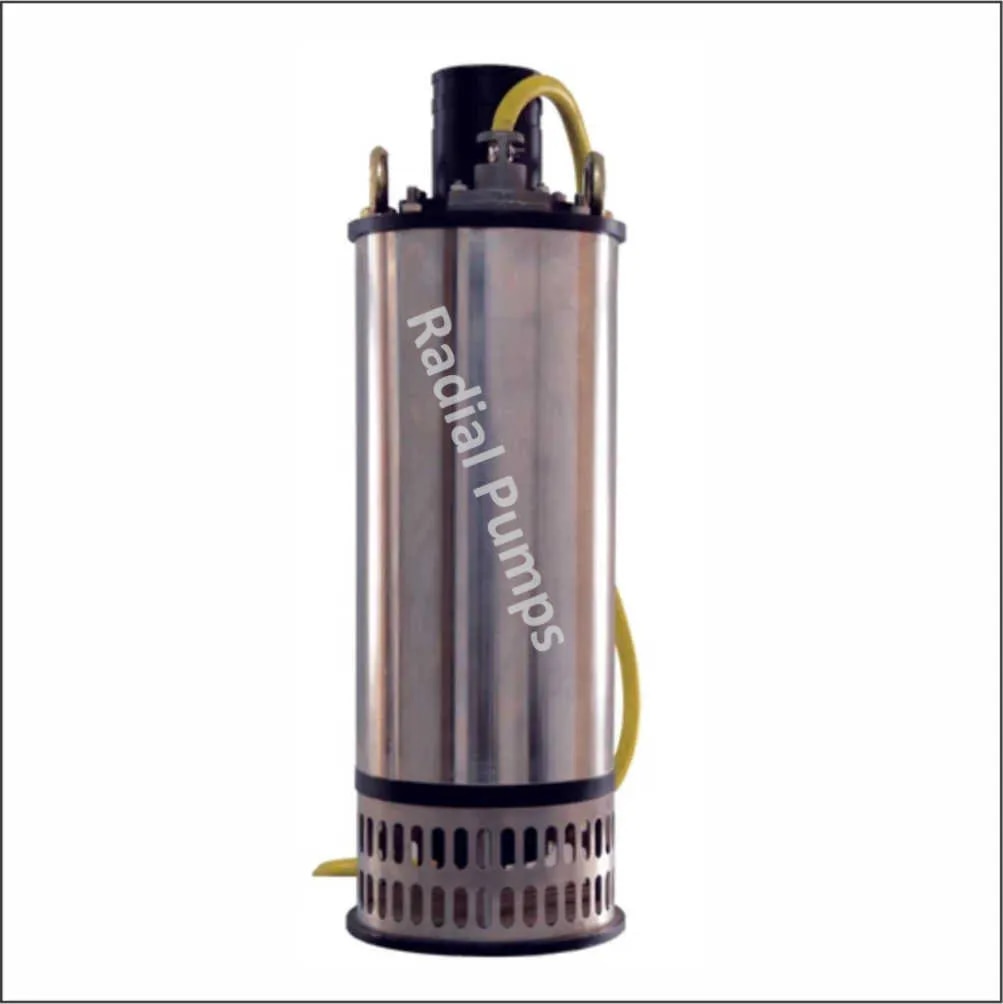

Dewatering Submersible Pump

Operating Range

Capacity : Up to 650 m3/hr

Head : Up to 60 mtr

Temperature : Up to 70°C

HP : Up To 100

Speed : 2880 rpm

Delivery Size : 32 mm To 250 mm

Solid Size : 10 to 50 mm

Connection: : DOI/SD/ATS

Voltage & Phase : 415V, 3 Phase

Insulation / Protection : ‘ F ‘ Class / ‘H’ Class – IP 68

Discharge Size : 32 mm to 200 mm

Cable : PVC/ EPR Insulated Double Seated Copper Conductor Flexible

Mechanical Seal: : Double Mechanical Seals(Tungsten Carbide Vs Tungsten Carbide)

Material of Construction

C. I, C.S, S.S., Allu-Alloy.

Optional Parts

Impeller, Casing, Wear plate with various

M.O.C. Bronze, CF8, CF8M, CD4MCU etc…

Applications

• Construction side.

• Muddy water transfer, Swimming pool.

• Dewatering of ponds, basement of huge building. Power plant, ETP, STP.

• Used in hotel, hospitals, railways dairy, chemical and, sugar, steel, cement, food beverages.

Features

• Precise chemical injection and economical cost.

• Effective and reliable operation.

• Manual on/off control.

• High speed operation.

• Double ball check valve operation.

• Compact Size.

• Long lasting PTFE diaphragm.
