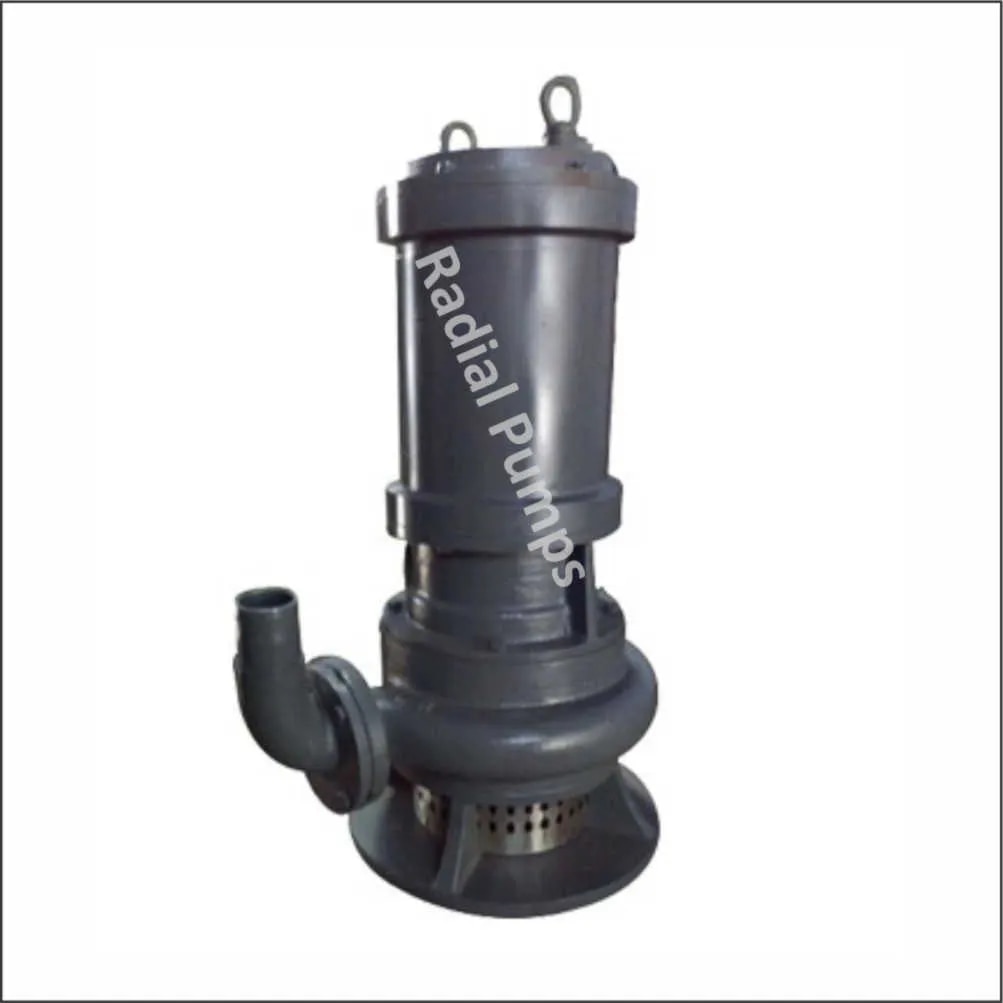

High Speed Low Duty Sewage Submersible Non Clog Pump

Operating Range

Capacity : Up to 150 M3/hr

Head : Up to 70 mtr

Temperature : Up to 45°C

HP : 0.5 to 20 (Up to 3 hp in single Phase)

Speed : 2880 rpm

Delivery Size : 32 mm to 150 mm

Solid Size : 50 mm

Connection : DOI/SD

Voltage & Phase : 415 V , 3 Phase / 230 V, 1 Phase Up to 3 HP

Insulation/Protection : ‘F’ Class, ‘H’ Class / IP 68

Motor : 2 pole continues duty dry type squirrel cage Induction Motor

Cable : PVC/EPR Insulated Double Seated Copper Conductor Flexible Cable

Mechanical Seal : Bi-Directional Twin Mechanical Seal with Various face combination looking to the application.

Material of Construction

C. I, C.S, S.S.

Optional Parts

Impeller, Casing, Wear plate with Various

M.O.C. Bronze, CF8, CF8M, CD4MCU etc…

Applications

• Muddy water transfer, Swimming pool.

• Dewatering of ponds, basement of huge building

• Power Plant, ETP, STP

• Used in hotel, hospitals, railways, dairy, chemical ind, sugar, steel, cement, food beverages etc…

Features

• These pumps are wet-installed type submersible motor pumps with non-clog impeller. pumps have a robust design for continuous duty operation for various slurry applications.

• Handling of all types of abrasive or aggressive waste water in water & waste water engineering as well as industry, especially untreated sewage containing long fibers & solid substances, fluids containing gas/air, as well as raw, activated & digested sludge; sea water desalination.
