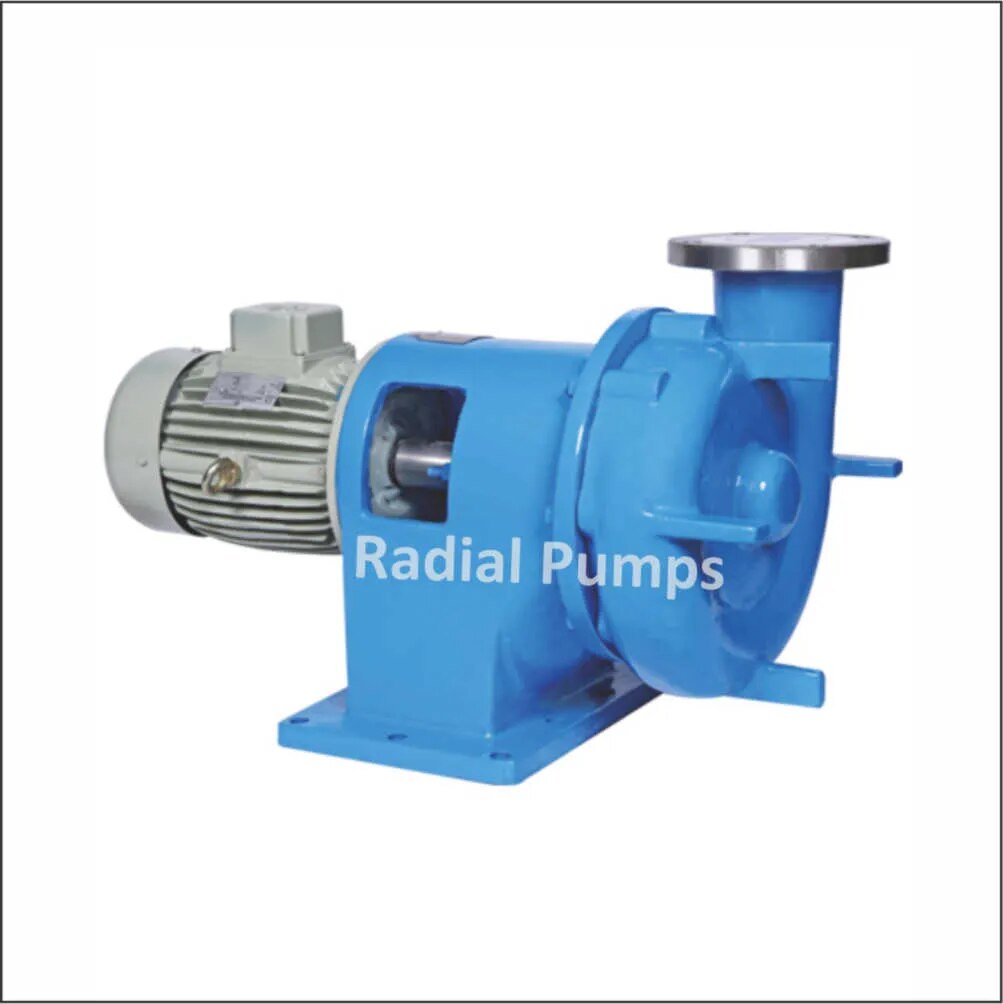

Water Separator Pump

Operating Range

Capacity : Up to 250 M3/hr

Head : Up to 26 mtr

Discharge Size : 80 mm to 125 mm

Temperature : Up to 80°C

Pressure : Up to 2.6 Kg/cm2

Speed : Up to 1440°C

Material of Construction

C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.

Duplex stainless steel, super duplex stainless steel

Applications

• RWSP pumps are gravity suction heavy duty with specially designed for the low NPSH application like Water separator, Vacuum application, Hot water pumping application.

• Barrels.

• Small tankers.

• Large use rolling mills for picking and solvent plant.

• Pharmaceutical.

• Laminates.

Features

• With flange mounted motor, single stage, gravity suction, radial split volute casing with radial flow impeller.

• Sealing Type: Gland packing, mechanical seal, hydraulic sealing.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
