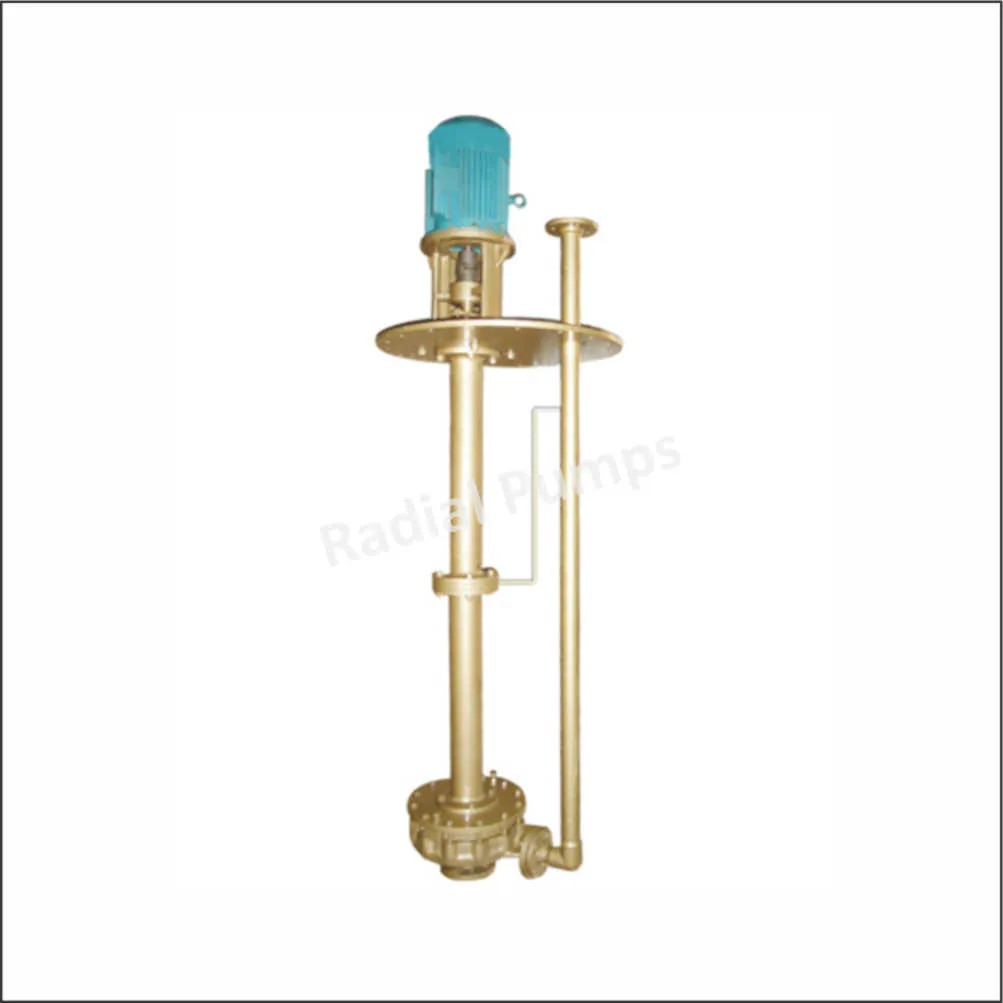

Vertical Sump Pump

Operating Range

Capacity : Up to 300 M3/hr

Head : Up to 60 mtr

Discharge Size : 25 mm to 125 mm

Temperature : Up to 60°C

Pressure : Up to 6 Kg/cm2

Speed : Up to 3500rpm

Material of Construction

C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc…

Duplex stainless steel, super duplex stainless steel.

Applications

• Sulphuric Acid, Nitric Acid, HCL transfer.

• Solvents, Diesel & Petrol transfer.

• Light Slurries, Organic chemical processing.

• Water supply, Cooling Water, Effluent, Cleaning product & Hydrocarbons.

• Zink & Copper Plant.

• HVAC (Cooling and Heating Application).

• Pharmaceutical & general industrial Services.

Features

• Designed to meet specific lengths & application requirements.

• Base plate designed to meet exiting support arrangements.

• Standardized & modular design.

• Standard shaft sealing by oil seal, mechanical seal or stuffing box packing.

• Connects the pump casing with the base plate.

• Vertical suspended with closed /open impellers.

• Closed impeller with back vanes provides axial balancing of impeller loads.

• Casing wear plate to protect the volute casing.

• Column pipe protects the shaft.

• Heavy duty shaft, sleeve & bearings.

• Supports the eventual intermediate bush bearings.

• Suction strainers, simple mounting & self-priming.

• Easy maintenance, replaceable parts.

• Compact design using less floor space.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
