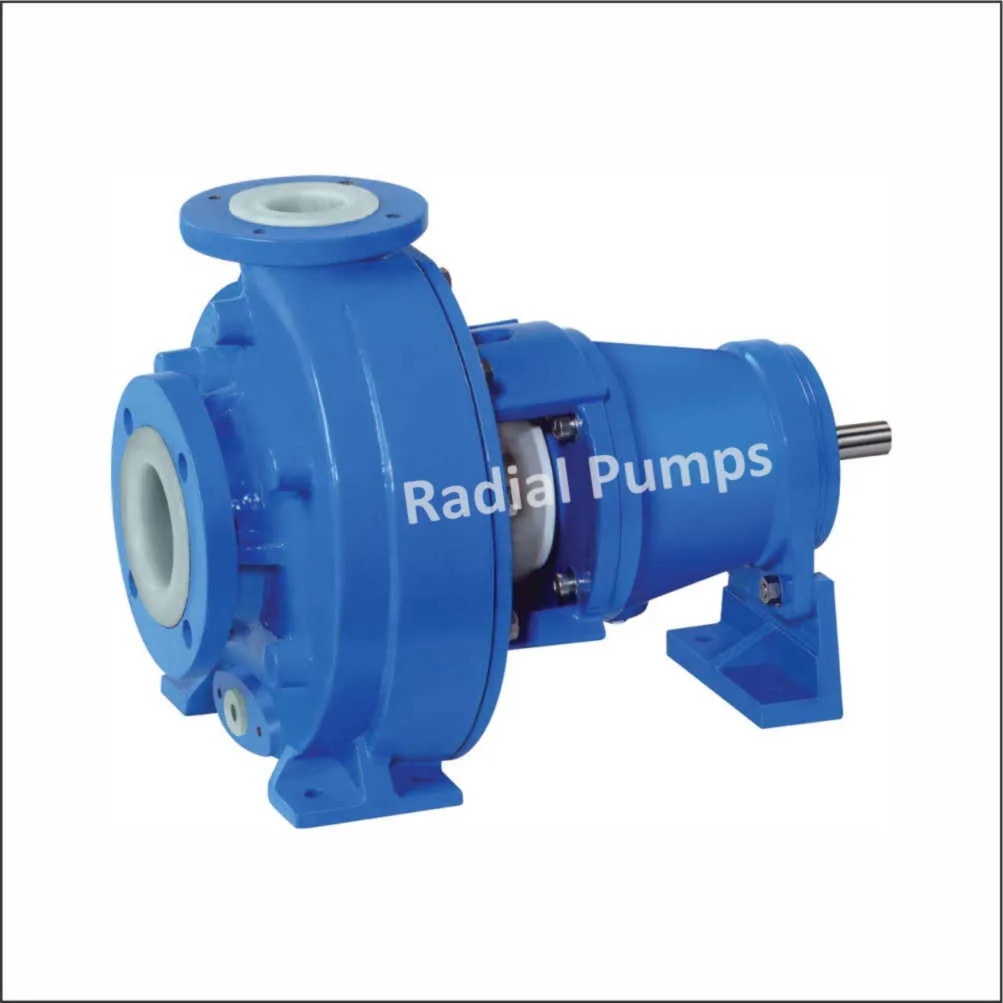

Teflon Lined Centrifugal Process Pump

Operating Range

Capacity : Up to 250 M3/hr

Head : Up to 90 mtr

Discharge Size : 25 mm to 100 mm

Temperature : Max. 200°C

Pressure : Up to 9 Kg/cm2

Speed : up to 3500 rpm

Material of Construction

PFA/FEP

Applications

• Water treatment plant (ETP/STP), electro plating & steel rolling mill, Oil industries.

• Excellent for transfer and loading – unloading HCL, Sulphuric Acid/Alkali, and Caustic Liquid.

• Scrubbing Of Corrosive Gases Like NH3, CO2, SO3, SO2, Br2, Cl2.

• For handling liquids in various industries like textile, paper, cellulose, sugar, steel, having temperature range, materials.

• Ideal for circulation of chemical in metal finishing industry.

• Natural choice for pickling line & scrubber in steel plants.

• High capacity transfer pump for filter press in dyes & chemicals, descaling oil & other fuels.

• Pesticide / Insecticide Plants, Chlorine Plants.

• Pharmaceutical bulk Drug Plants, Heavy duty chemical plants.

Features

• All wetted parts are solid injection moulded PFA/FEP, extra wall thickness to combat severe corrosive condition.

• Replaceable PFA/FEP casing liner-reduces the maintenance cost.

• Resistance to most chemicals and solvents.

• High thermal stability – continuous duty up to 120ºC temperature.

• Mechanical strength at elevated temperature.

• High abrasion resistance.

• Resistance to sunlight and nuclear radiation, fungus.

• Low flame and smoke characteristics.

• Low permeability to most gases and liquids.

• Cold weather impact strength.

• Low maintenance cost.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
