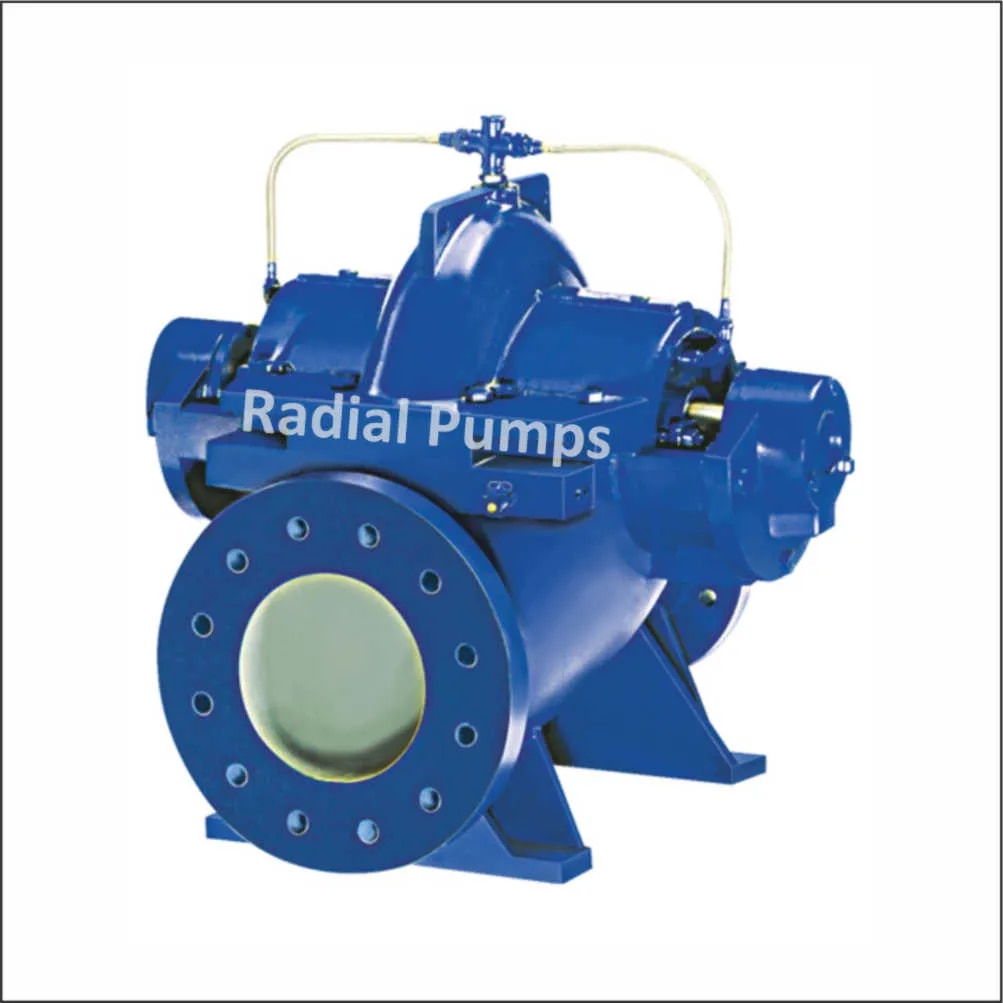

Split Casing Pump

Operating Range

Capacity : Up to 5000 M3/hr

Head : Up to 140 mtr

Discharge Size : 50 mm to 500 mm

Temperature : Up to 100°C

Pressure : Up to 14 Kg/cm2

Speed : up to 3500 rpm

Material of Construction

C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc

Duplex stainless steel, super duplex stainless steel

Applications

• Suitable for Fire – Fighting.

• Primary & Secondary HVAC Application.

• High Pressure Boosting System.

• Dewatering in Mines.

• Cooling Tower.

• Recirculation.

• Desalination.

• Water Supply.

• Paper Plant.

• Petroleum Refineries.

• Sugar & Steel Plant.

• Power Plant

• Air Conditioning & Refrigeration System.

• Irrigation.

Features

• These are heavy-duty rugged pumps with Horizontal Axially Split Volute type casing.

• Rotating Assembly is accessible for Inspection or maintenance by removing upper half casing only.

• Provide high Hydraulic and overall efficiency due to superior design and manufacturing techniques.

• Foot and center line mounting configurations.

• Low NPSHr required.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
