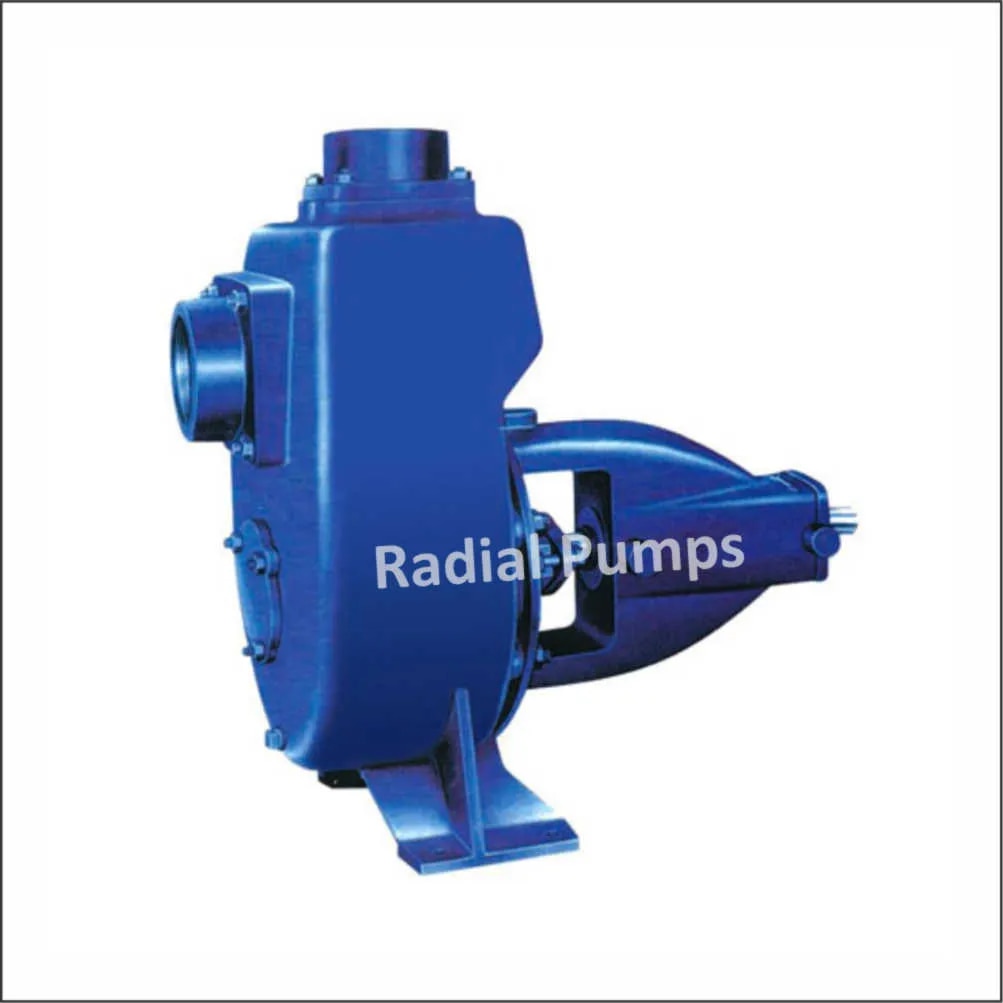

Self Priming Mud Pump

SELF PRIMING NON-CLOG MUD PUMPS

(GLAND/MECHANICAL SEAL TYPE)

Operating Range

Capacity : Up to 640 M3/hr

Head : Up to 55 mtr

Discharge Size : 40 mm to 200 mm

Temperature : Up to 110°C

Pressure : Up to 5 Kg/cm2

Speed : Up to 3500 rpm

Material of Construction

C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.

Duplex stainless steel, super duplex stainless steel.

Applications

• Pier, Excavations, Pits, Pot-holes etc., Gram panchayat, Municipalities, Hospitals, Large Housing Colonies, industries like Chemical, Pharmaceuticals, Food, Cement, Paper, Sugar, Salt, Steel & Other for Liquid Cargo from Freighter, Barges.

• Mobile machinery – Cooling water for Marine Engines & Shovels.

• Civil construction dewatering foundations, Trenches & Pits, Filter Press Feeding.

• Waste Water treatment plant (ETP/STP)

• Dewatering, Mud, Marine, Effluent, Hotel, Loading & Transfer of Oils, Spirits, Swimming Pools.

• Pumping Petroleum products & Chemical.

• Public utilities-sewage pumping.

Features

• Non-clogging designed for high efficiency.

• Semi open type &hand finished for perfect smooth flow.

• Heavy duty built in volute having self-priming features & integrally cast with base from closed grained C.I. castings.

• Companion flanges are supplied along with pumps.

• Long life due to replaceable wearing parts.

• Quick automatic self-priming action.

• Repairs possible without disturbing the pipe connection due to back pull out design.

• Suitable for motor/engine, portable when fitted on trolley/trailer.

• No foot valve required.

• Priming of suction pipe line not required.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
