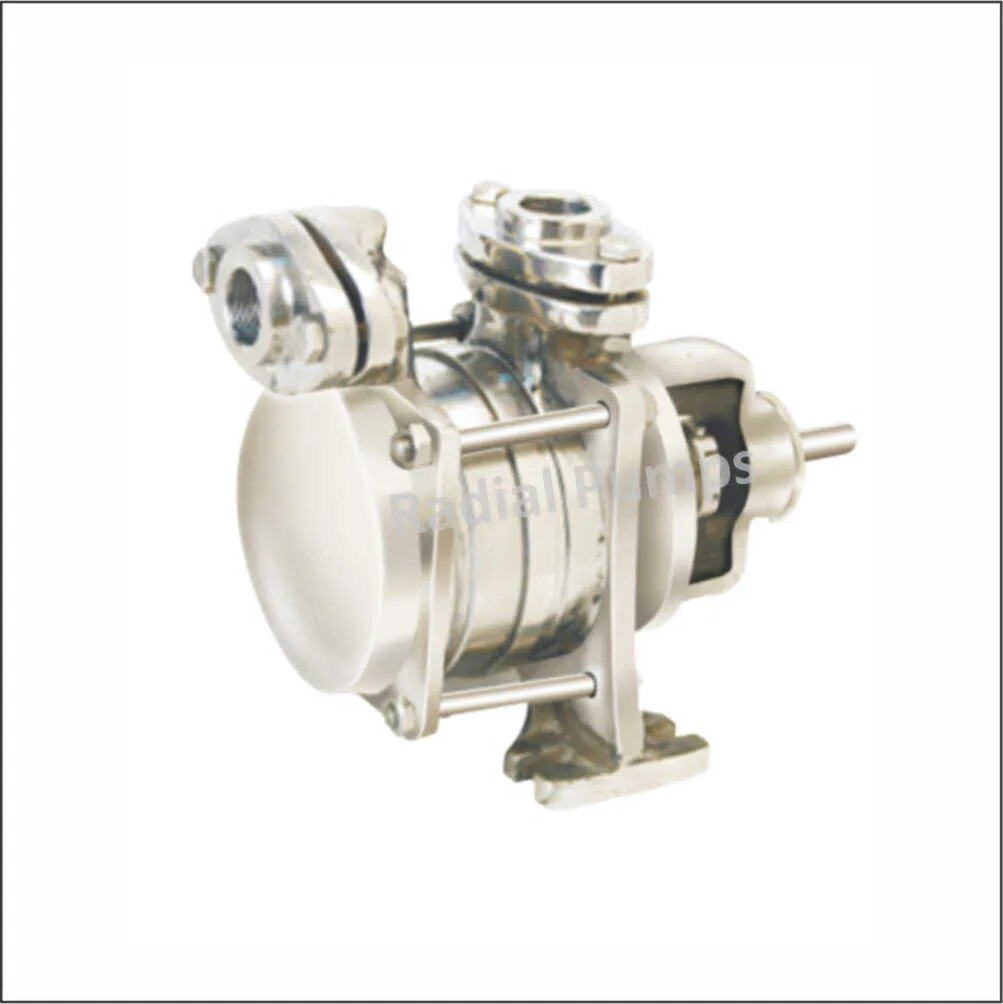

Self Priming Barrel Pump

Operating Range

Capacity : Up to 8 m3/hr

Head : Up to 60 mtr

Discharge Size : 25 mm to 40 mm

Temperature : Up to 110°C

Pressure : Up to 6 Kg/cm2

Speed : Up to 1440 rpm

Material of Construction

C. I, C.S, SS-304 / 304L, SS316 / 316L,

Bronze, Alloy-20,

CD4MCU Hast alloy B & C, etc.

Applications

• Loading and unloading of small & big drums and barrels, tankers.

• Large use rolling mills for picking and solvent plant.

• Pharmaceutical.

• Laminates.

Features

• A jam free pump with moving parts made of special metal.

• No foot valve required.

• Quick automatic self-priming action.

• Specialized die cast material.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
