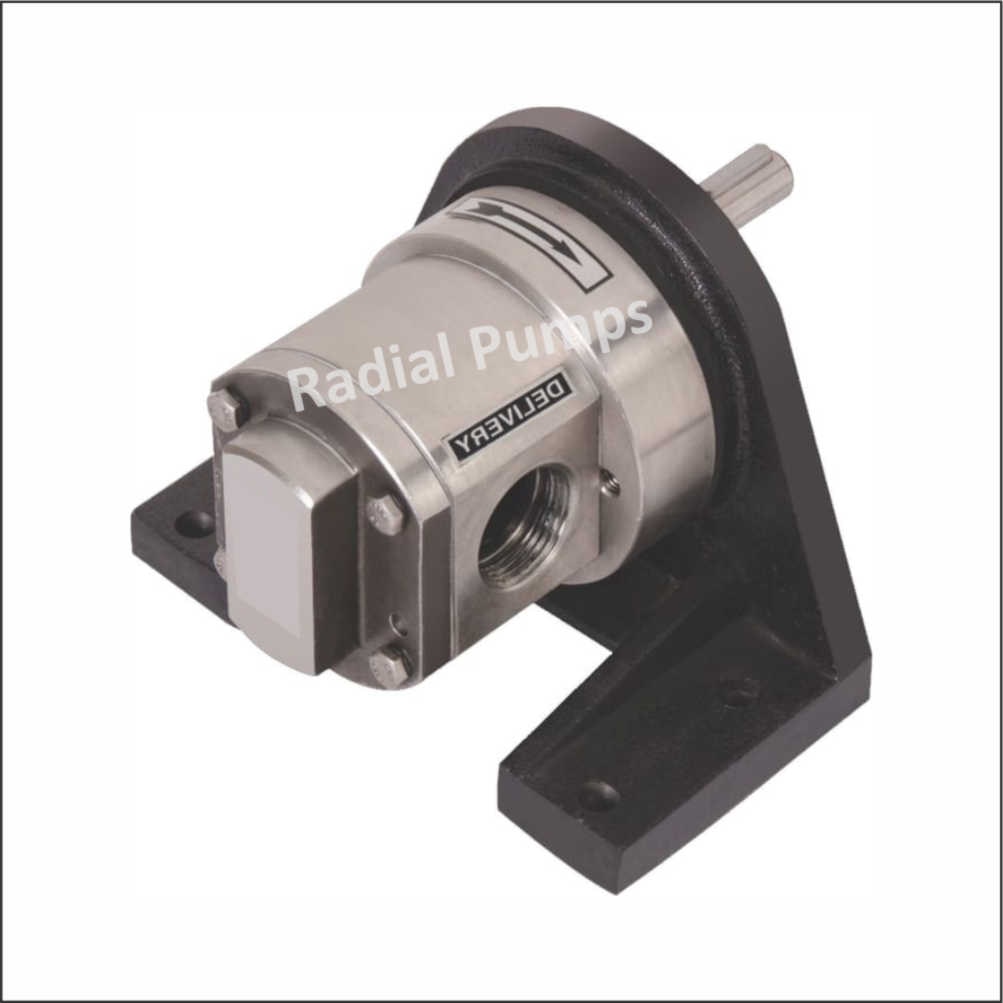

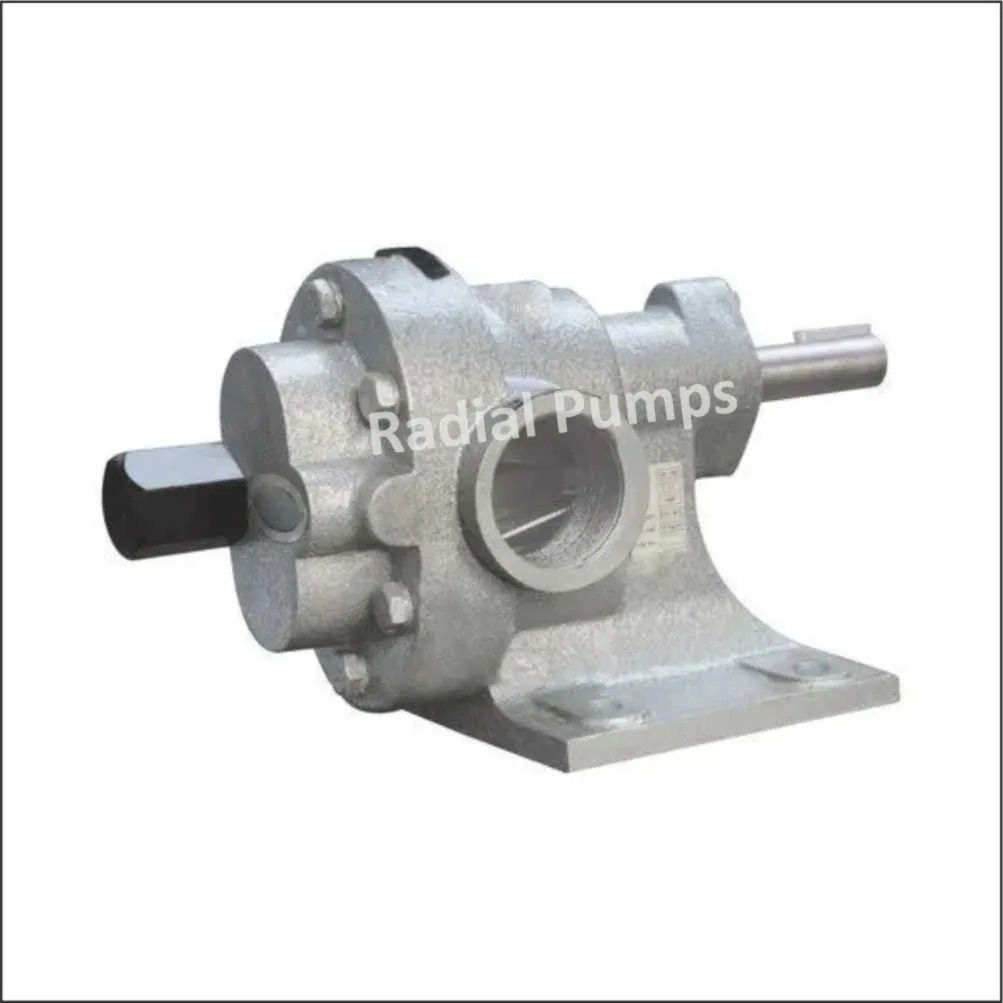

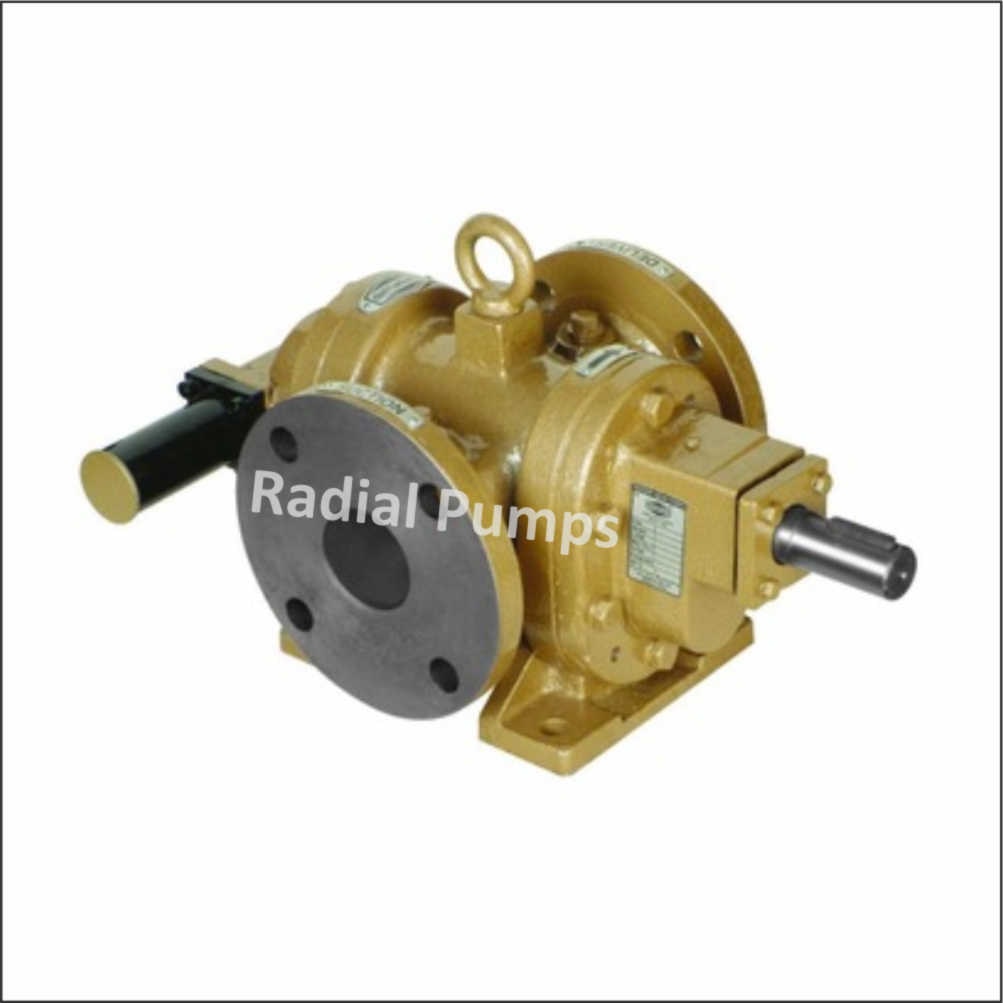

Rotary Gear Pump

Operating Range

Capacity : Up to 200 M3/hr

Head : Up to 120 mtr

Discharge Size : 12 mm to 120 mm

Temperature : Up to 200°C

Pressure : Up to 12 Kg/cm2

Speed : Up to 1440 rpm

Material of Construction

C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.

Duplex stainless steel, super duplex stainless steel

Applications

• RGP pumps are gravity suction heavy duty pumps with specially designed for the low NPSH application like Oil separator, Vacuum application, Hot oil pumping application.

• Barrels unloading.

• Large use rolling mills for picking and solvent plant.

• Pharmaceutical.

• Laminates.

• They can be used for viscous and aggressive fluids.

Features

• Compact in size, low noise, and high efficiency.

• Easy maintenance, longer life, economical.

• An inbuilt pressure relief valve.

• Bush bearing with a heavy shaft.

• Double helical gears to reduce axial thrust.

• Continuous duty.

• Handle multiple liquids.

• Unique design.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
