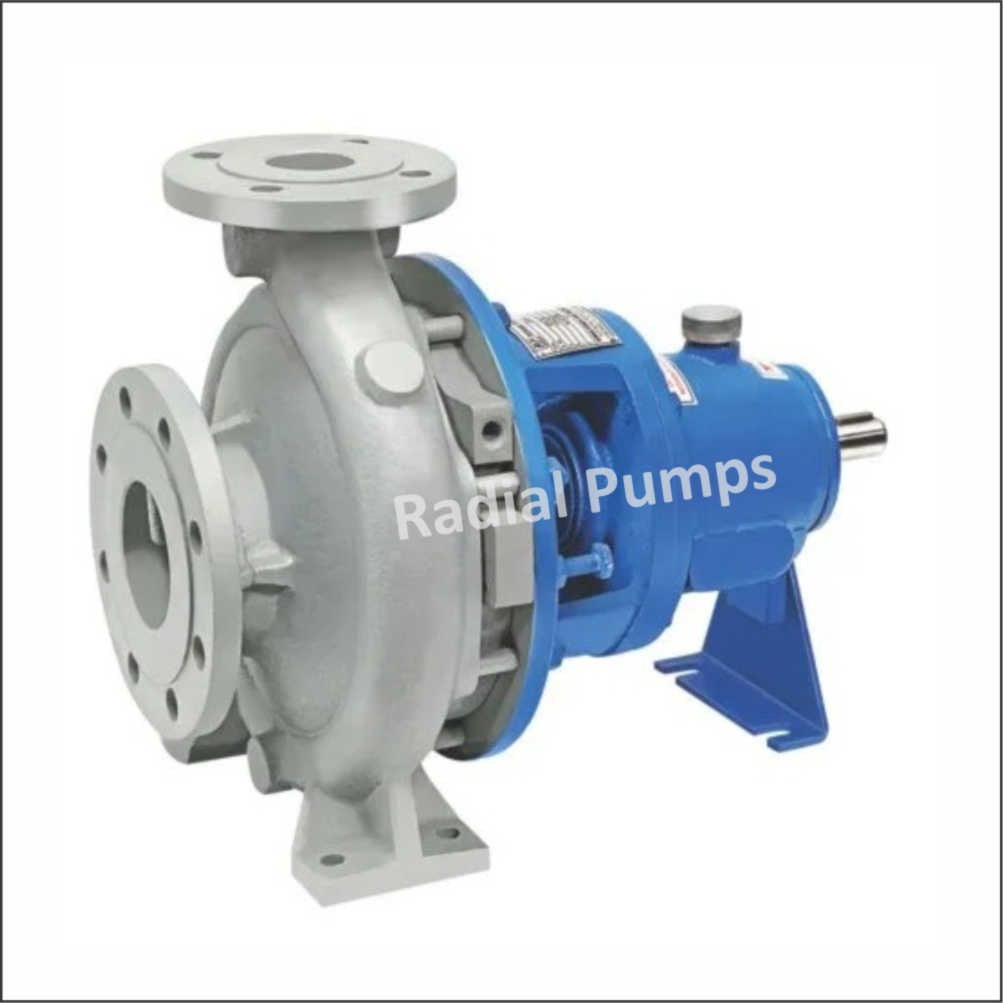

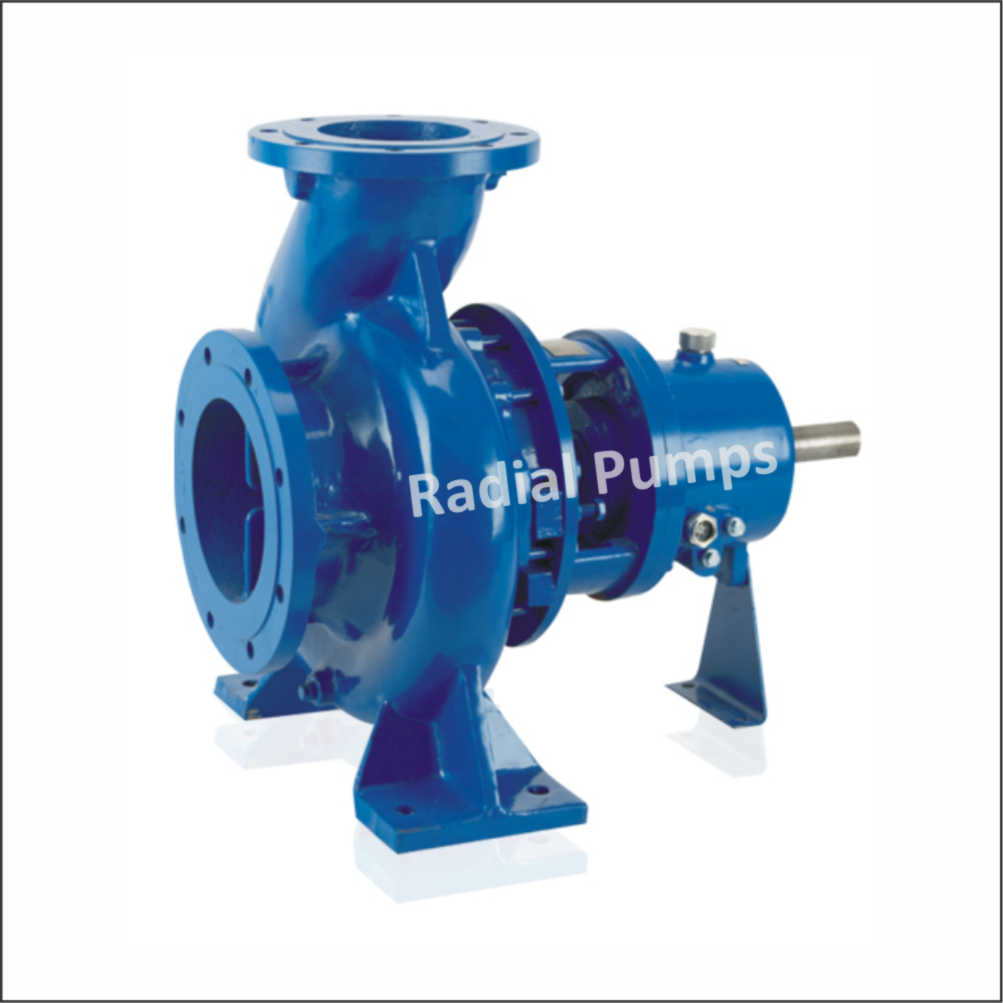

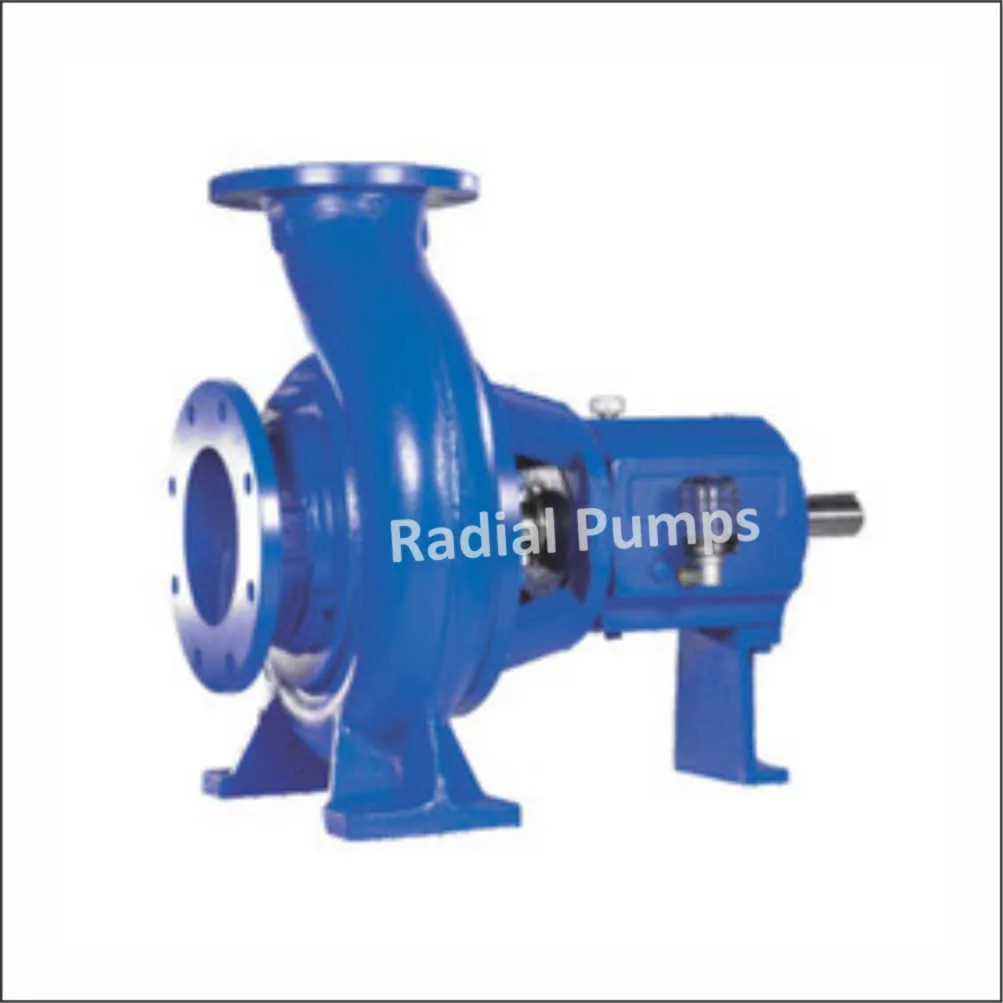

Pulp & Paper Mill Pump

Operating Range

Capacity : Up to 1200 M3/hr

Head : Up to 55 mtr

Discharge Size : 25 mm to 300 mm

Temperature : Up to 250°C

Pressure : Up to 5.5 Kg/cm2

Speed : Up to 3500 rpm

Material of Construction

C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.

Duplex stainless steel, super duplex stainless steel,

Applications

• Handling pulp stock up to 7% consistency in Pulp & Paper industries.

• Handling Sugar Juice, Bagasse Slurries, Effluent, water Thin & Thick Sludge in Sugar industries.

• Organic/inorganic chemical intermediates industries.

• Waste water treatment plant (ETP/ STP), fertilizers, cement and steel industries.

• Chemicals, petrochemicals, refineries, laminates industries.

• Rubber, organic and inorganic chemical, food, salt, textiles and General industries services etc…

• Filter press- feeding, slurry transfer.

Features

• Back pull out design.

• Conforming to DIN 24256/ISO 2858 Dimensions

• High efficiency hydraulic design.

• Heavy duty shaft, sleeve and bearings.

• Low NPSH.

• Noise and maintenance free.

• Single & double mechanical seal.

• Semi open impeller provides axial balancing.

• Casing wear plate for protect the volute casing.

• Steady head and capacity.

• One roller bearing on pump end, two angular contact ball bearings.

• Grease or oil lubricated bearings.

• Several flange drilling options according to valid standards.

• Suitable with V-belt drive or direct coupled with a motor.

• Foot and centerline mounting options.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
