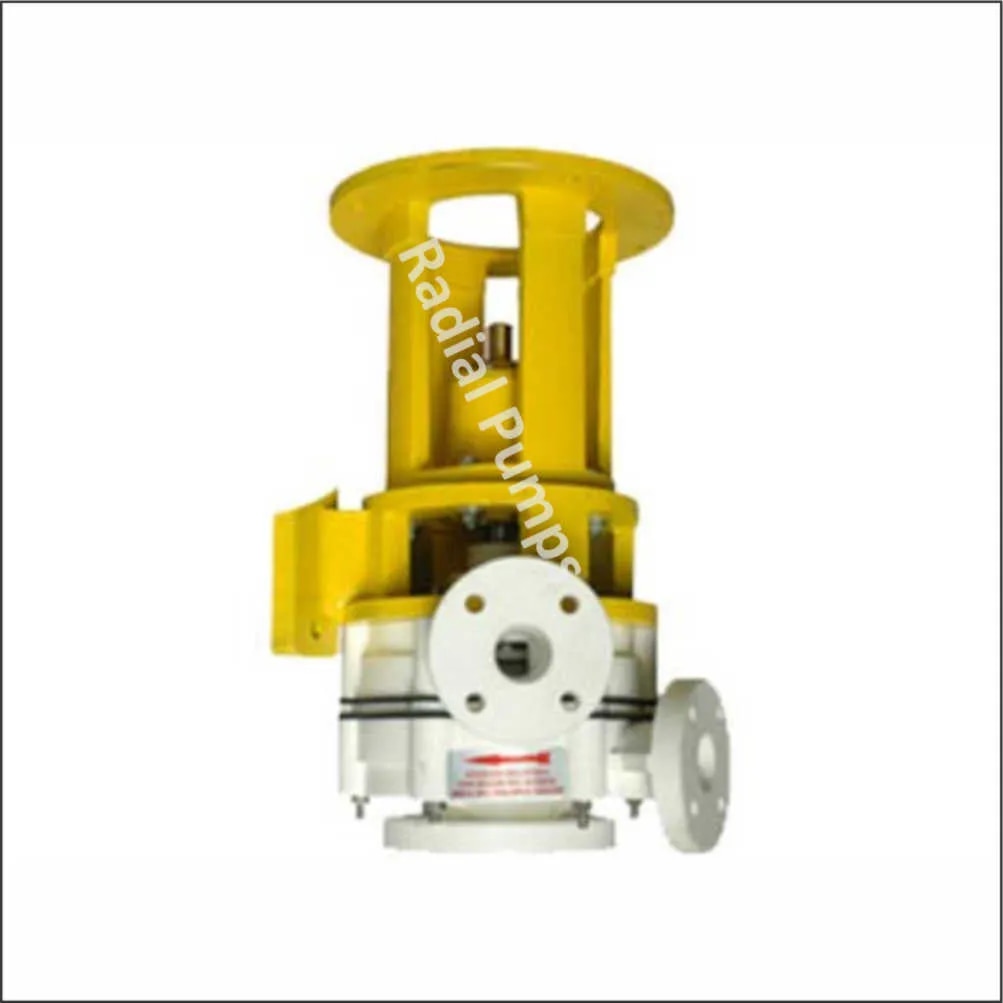

Polypropylene Vertical Pump

Operating Range

Capacity : Up to 55 M3/hr

Head : Up to 45 mtr

Discharge Size : 25 mm to 50 mm

Temperature : Up to 80°C

Pressure : Up to 4.5 Kg/cm2

Speed : Up to 3500 rpm

Material of Construction

PP, PPCP, UHMWPE

Applications

• Electro Plating, Pickling & Steel Rolling Mills.

• Water Treatment Plant (ETP/STP), Effluent Treatment Plant.

• Excellent for Transfer and Loading-unloading like HCL, Sulfuric Acid/Alkali and Caustic Liquid.

• Scrubbing of Corrosive Gases like NH3, CO2, SO3, SO2, Br2, Cl2.

• For Handling Liquids in Various Industries like Textile, Paper, Cellulose, Sugar, Steel, Food, Having Temperature Range, Materials.

• Ideal for Circulation of Chemical in Metal Finishing Industry.

• Natural Choice for Pickling Line & Scrubber in Steel Plants.

• Filter Press for Dyes & Chemicals, Descaling, Oil & Other Fuels.

Features

• Designed to suit extremely corrosive duties in the process & chemical industries.

• Self-venting type casing.

• Dynamically & hydraulically balanced impeller with aerodynamic profile vanes.

• Pump casing is provided with external metal ring for construction stability.

• Grease / oil lubricant bearings.

• Pumps are fitted with either mechanical seal or gland packing depending on the service conditions.

• Shaft & sleeve of different material depending on the compatibility of the liquid to be handled.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
