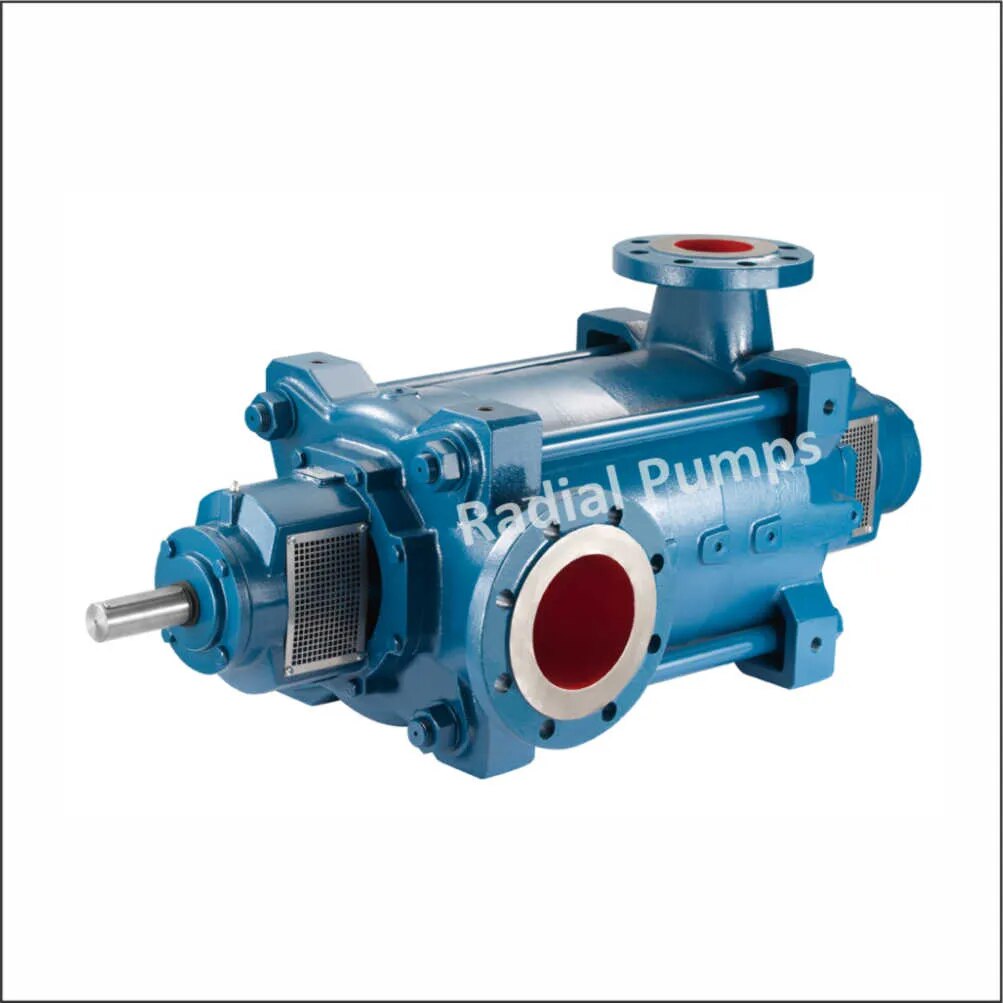

High Pressure Multistage Horizontal Pump

Operating Range

Capacity : Up to 80 M3/hr

Head : Up to 300 mtr

Discharge Size : 32 mm to 100 mm

Temperature : Up to 140°C

Pressure : Up to 30 Kg/cm2

Speed : Up to 3500 rpm

Material of Construction

C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.

Duplex stainless steel, super duplex stainless steel

Applications

• Mines – Dewatering & Descaling.

• Water supply to high rise buildings.

• High pressure application in Pulp & Paper mills.

• Water-Transfer of liquid containing vapor, air or gas.

• Boiler feed, marine, refrigeration, fuel oil.

• Hot & cooling water circulating.

• Fire-fighting system.

• Power plant, Booster plants.

• High pressure testing

• Filter Press Feeding/Washing.

• Sprinkling in irrigation system.

Features

• Axial thrust compensated by balancing drum.

• Barrel type construction.

• High pump efficiency.

• Low maintenance cost.

• Mechanical seal or gland packing.

• Multi stage with single suction die casting closed impeller.

• Heavy duty ball bearings capable to carry thrust load on either direction.

• Grease or oil lubricated bearings.

• Un-cooled soft-packing are provided with sealing connection on a suction side.

• For higher pumped media temperatures, a stuffing box can be provided with cooling cover facilitating the external cooling.

• All the flanges are faced and drilled as per din standards.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
