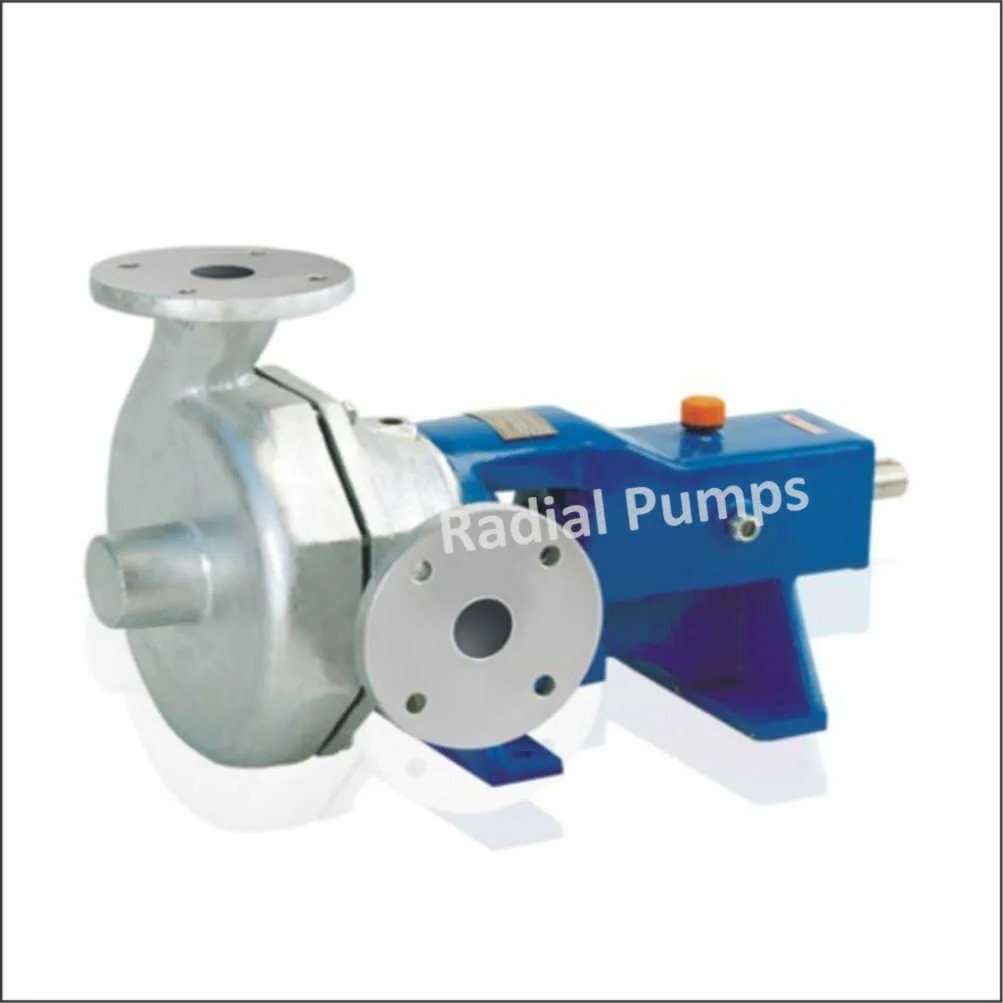

Filter Press Pump

Operating Range

Capacity : Up to 200 M3/hr

Head : Up to 100 mtr

Discharge Size : 40 mm to 100 mm

Temperature : Up to 140°C

Pressure : Up to 10 Kg/cm2

Speed : Up to 3500 rpm

Material of Construction

C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.

Duplex stainless steel, super duplex stainless steel

Applications

• Filter press feeding. Slurry transfer.

• Waste Water treatment plant (ETP/STP).

• Evaporator and Scrubber application.

• Dyes & Intermediates, Steel Rolling mills.

• Pulp & Paper, Sugar, Salt, Starch industries.

• Zink & Copper plant.

• Ceramic, General industrial services.

Features

• Single stage semi open impeller.

• Special design for filter press application.

• Heavy duty shaft, sleeve & bearings.

• Noise & maintenance free.

• Long life due to replaceable wearing parts.

• High efficiency, low power consumption.

• Semi open impeller provides axial balancing.

• Grease / oil lubricant bearings.

• Only positive (+V) suction head.

• Suitable with V-belt drive or direct coupled with a motor.

• Foot and centerline mounting options.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
