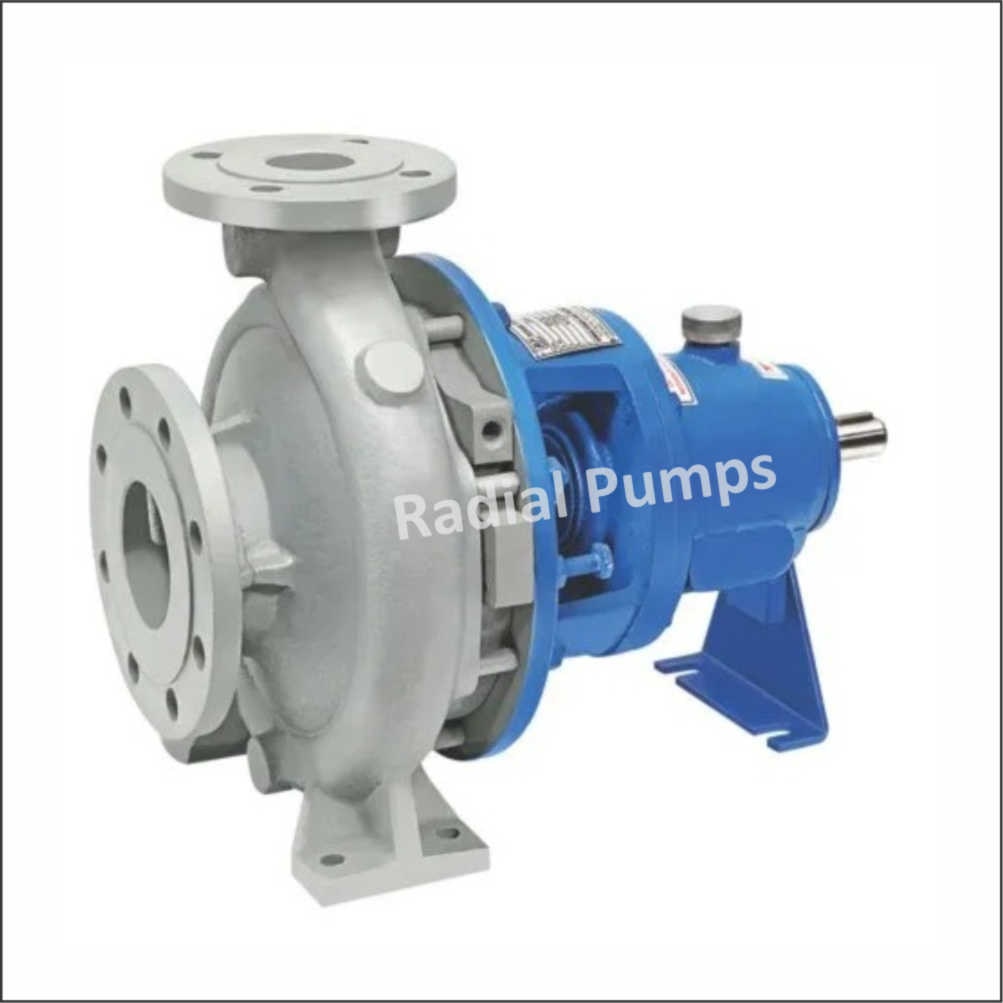

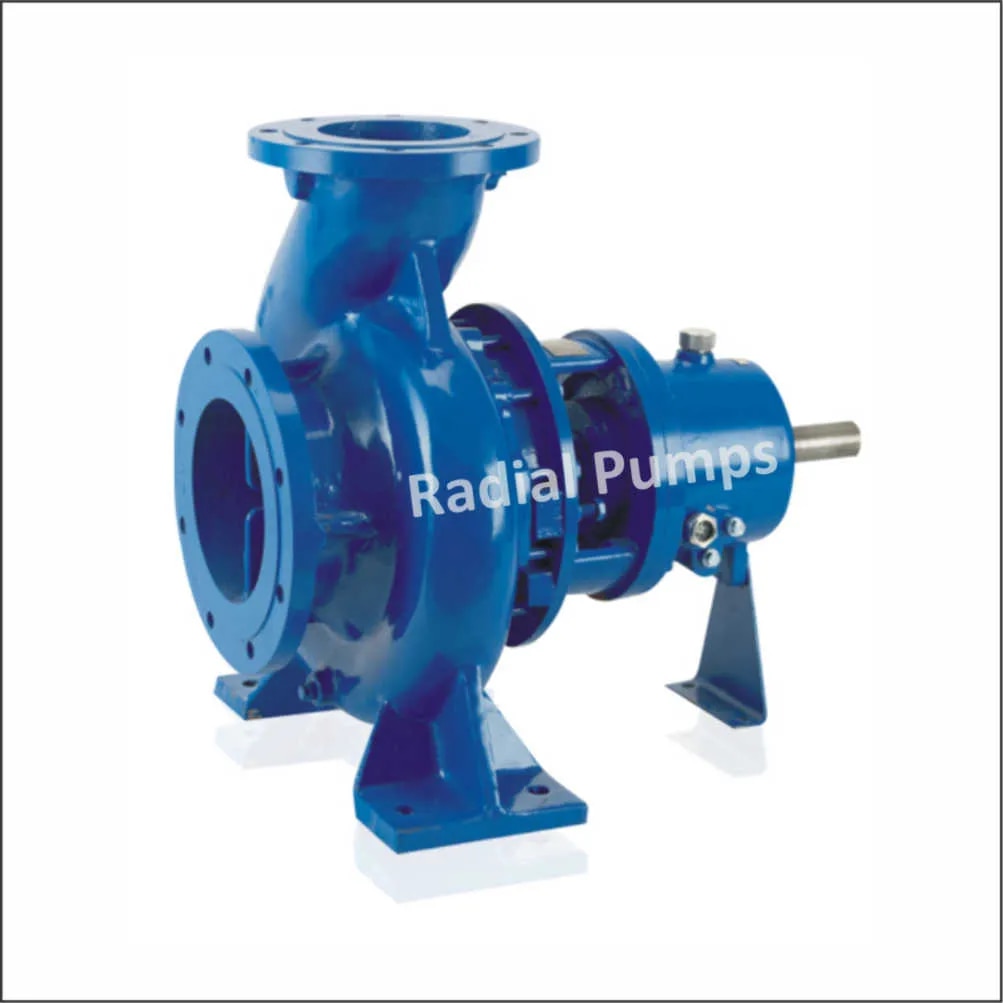

Centrifugal Process Pump

Operating Range

Capacity : Up to 1200 M3/hr

Head : Up to 150 mtr

Discharge Size : 25 mm to 300 mm

Temperature : Up to 350°C

Pressure : Up to 15 Kg/cm2

Speed : Up to 3500 rpm

Material of Construction

C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.

Duplex stainless steel, super duplex stainless steel

Applications

• Hot & cold water circulation, cooling water circulation.

• Drip irrigation, water supply and building services.

• Thermic fluid, Jet dyeing, volatile fluids.

• Condensate handing, firefighting system, ETP/STP.

• Engineering, marine, refrigeration and cooling tower.

• Chemicals, petrochemicals, refineries, sugar, pulp &paper, laminates industries.

• Power plants, desalination plants, steel plants, rubber, Organic and inorganic chemical, DM water, sea water.

• Food, salt, textile and general industries services. Corrosive and abrasive process chemicals like acids, alkalis, Solvents, slurries, hydrocarbons, crystallizing liquids, nitric, Ammonia, fertilizer, hos hate.

• Chemical effluents.

Features

• Back pull out design.

• Conforming to DIN 24256/ISO 2858 Dimensions

• High efficiency hydraulic design.

• Heavy duty shaft, sleeve and bearings.

• Low NPSH.

• Noise and maintenance free.

• Single & double mechanical seal.

• Closed impeller with multi vane providing axial balancing of impeller loads.

• Steady head and capacity.

• One roller bearing on pump end, two angular contact ball bearings.

• Grease or oil lubricated bearings

• Several flange drilling options according to valid standards.

• Suitable with V-belt drive or direct coupled with a motor.

• Foot and centerline mounting options.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
