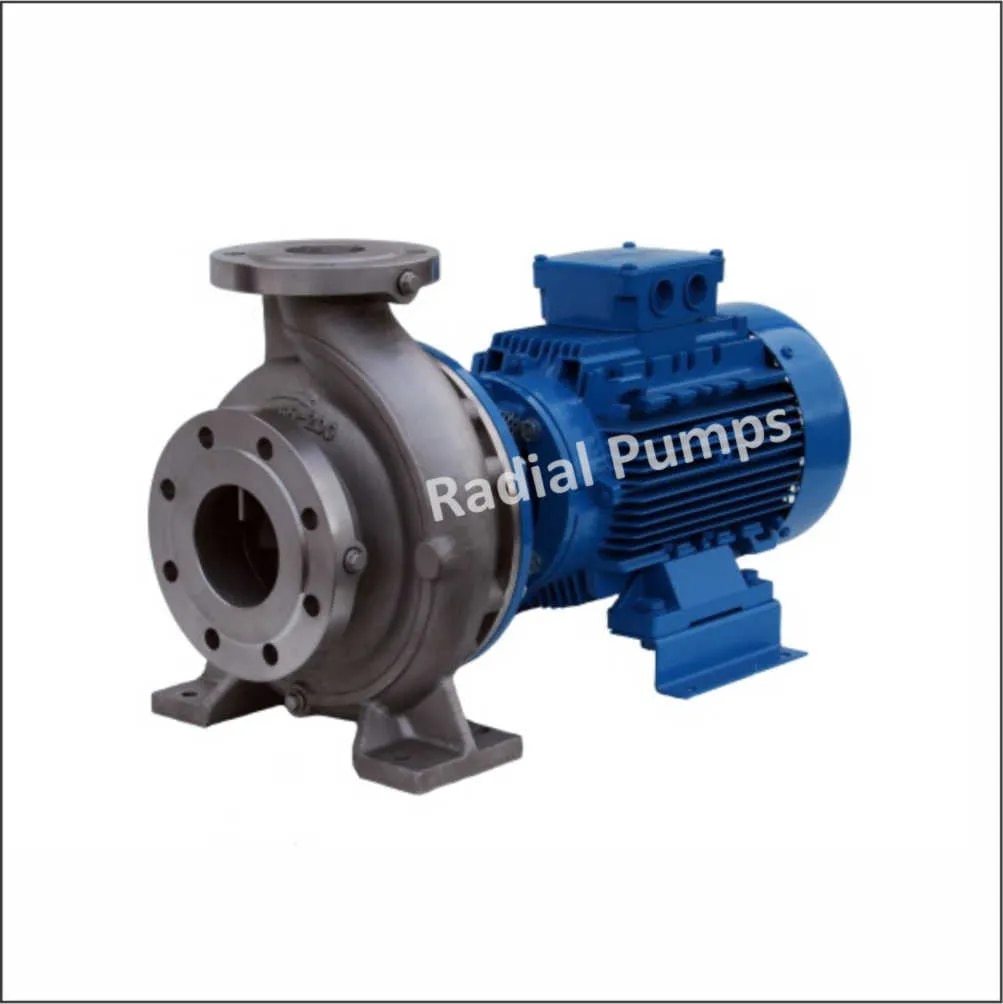

Centrifugal Monoblock Pump

Operating Range

Capacity : Up to 120 M3/hr

Head : Up to 60 mtr

Discharge Size : 25 mm to 100 mm

Temperature : up to 60°C

Power Rating: : 1.0 hp to 20 hp – three phase

0.5 hp to 2 hp – single phase

Voltage Rating : 380 V to 415 V – three phase

200 V to 240 V – single phase

Speed : up to 2880 rpm

Material of Construction

C. I, C.S, SS-304, SS316, Bronze, etc

Applications

• Gardening and irrigation.

• Cooling water circulation.

• Oils, solvents and hydrocarbons.

• Starch and sugar production.

• Agriculture, farms, civil, application.

• Industries for clear water handling, cooling tower.

• Water supply for domestic use in apartments, hotels, swimming pools,

• Automobile service station, hospitals, clubs, hostels, power plants, fire-fighting.

Features

• Horizontal, Centrifugal, Mono-block type pump fitted with single stage closed Impeller and providing axial balancing of impeller loads.

• No fear of motor burning due to wide operating voltage range and Non-overloading power characteristics at any operating point.

• Advantage of mounting space saving due to elimination of base plate, coupling and coupling guard.

• Long life cycle, reduced maintenance costs.

• Low maintenance cost.

• Multi stage with single suction die casting closed impeller.

• High efficiency impeller.

• Can be supplied bare-shaft or with IE3 motors for energy saving.
