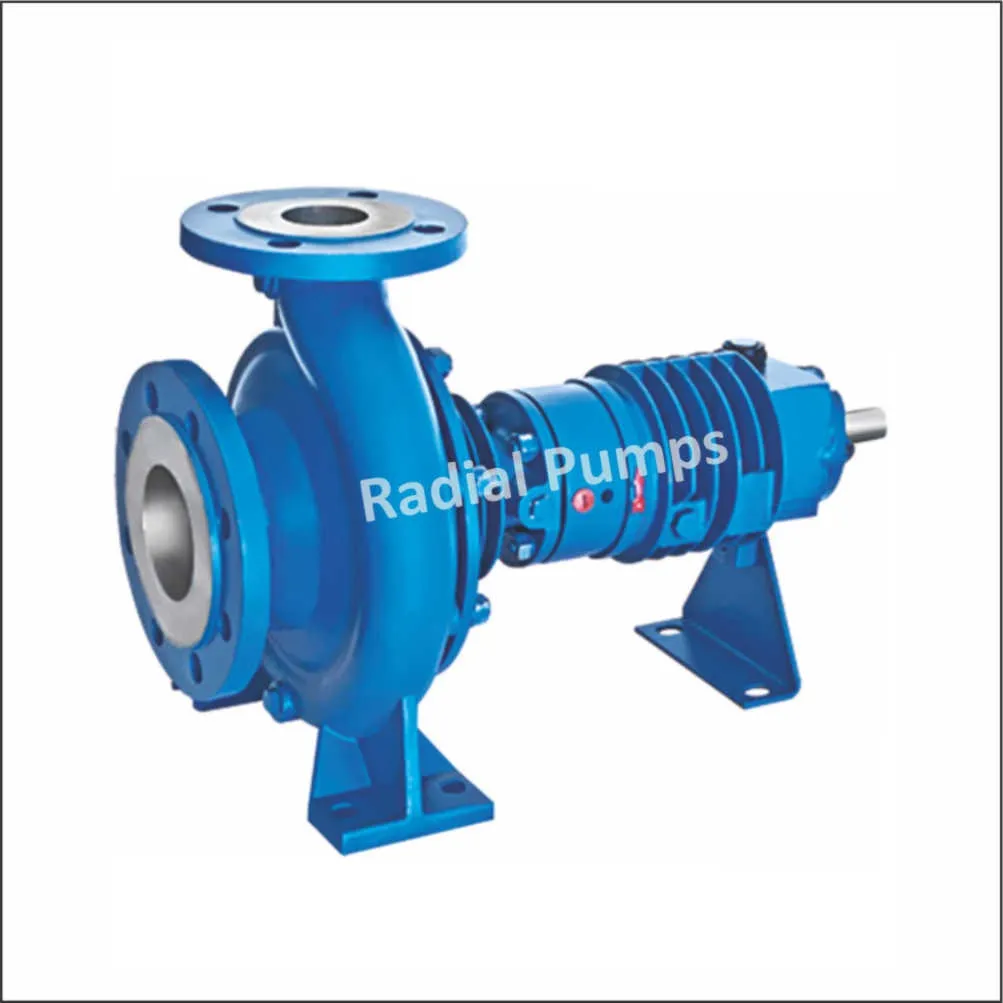

Thermic Fluid Hot Oil Pump In Ahmedabad

Operating Range
Capacity : Up to 180 M3/hr
Head : Up to 80 mtr
Discharge Size : 32 mm to 80 mm
Temperature : Up to 350°C
Pressure : Up to 8 Kg/cm2
Speed : up to 3500 rpm

Material of Construction
Grey cast iron, CS, Alloy cast steel

Applications
• Boiler & Chiller Industries.
• Petro-chemical industries.
• Oil industries.
• Synthetic-fiber industries.
• Textile, dying, printing industries.
• Plastic & rubber industries.
• Chemical Industries.
• Paper & Pulp Industries
• Timber making industries.
• Sugar Industries.
• Food industries.
• Pharmaceutical Industries.
• Construction industries.

Features
• Horizontal, single stage, single suction volute type, air-cooled centrifugal pumps with closed impeller pump shaft is supported by two heavy duty ball bearings, heat resistant mechanical seal, suction flange is on the front and axial, discharge flange is at top & radial.
• Centerline supported casing.
• Low maintenance cost.
• Can be supplied bare-shaft or with IE3 motors for energy saving.
