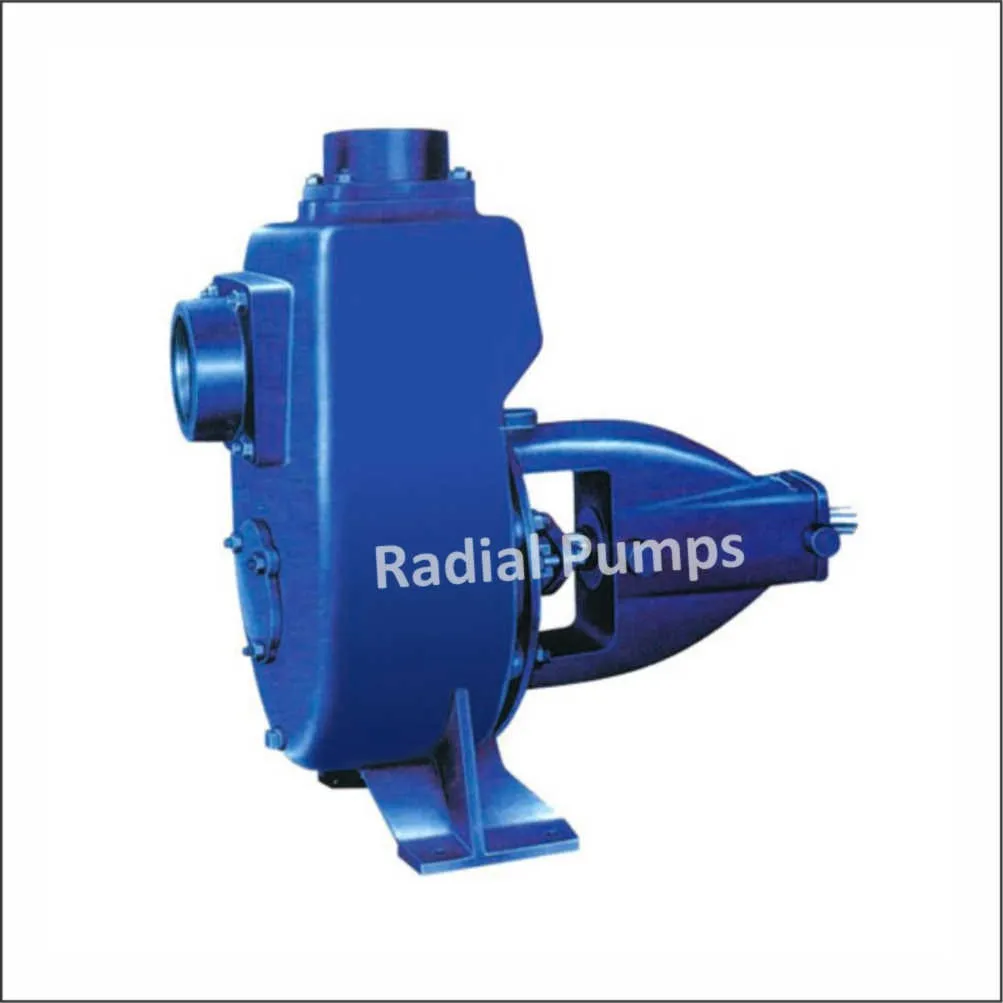

SELF PRIMING NON-CLOG MUD PUMPS
(GLAND/MECHANICAL SEAL TYPE)
Operating Range
Capacity : Up to 640 M3/hr
Head : Up to 55 mtr
Discharge Size : 40 mm to 200 mm
Temperature : Up to 110°C
Pressure : Up to 5 Kg/cm2
Speed : Up to 3500 rpm
Material of Construction
C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.
Duplex stainless steel, super duplex stainless steel.
Applications
• Pier, Excavations, Pits, Pot-holes etc., Gram panchayat, Municipalities, Hospitals, Large Housing Colonies, industries like Chemical, Pharmaceuticals, Food, Cement, Paper, Sugar, Salt, Steel & Other for Liquid Cargo from Freighter, Barges.
• Mobile machinery – Cooling water for Marine Engines & Shovels.
• Civil construction dewatering foundations, Trenches & Pits, Filter Press Feeding.
• Waste Water treatment plant (ETP/STP)
• Dewatering, Mud, Marine, Effluent, Hotel, Loading & Transfer of Oils, Spirits, Swimming Pools.
• Pumping Petroleum products & Chemical.
• Public utilities-sewage pumping.
Features
• Non-clogging designed for high efficiency.
• Semi open type & hand finished for perfect smooth flow.
• Heavy duty built in volute having self-priming features & integrally cast with base from closed grained C.I. castings.
• Companion flanges are supplied along with pumps.
• Long life due to replaceable wearing parts.
• Quick automatic self-priming action.
• Repairs possible without disturbing the pipe connection due to back pull out design.
• Suitable for motor/engine, portable when fitted on trolley/trailer.
• No foot valve required.
• Priming of suction pipe line not required.
• Can be supplied bare-shaft or with IE3 motors for energy saving.
