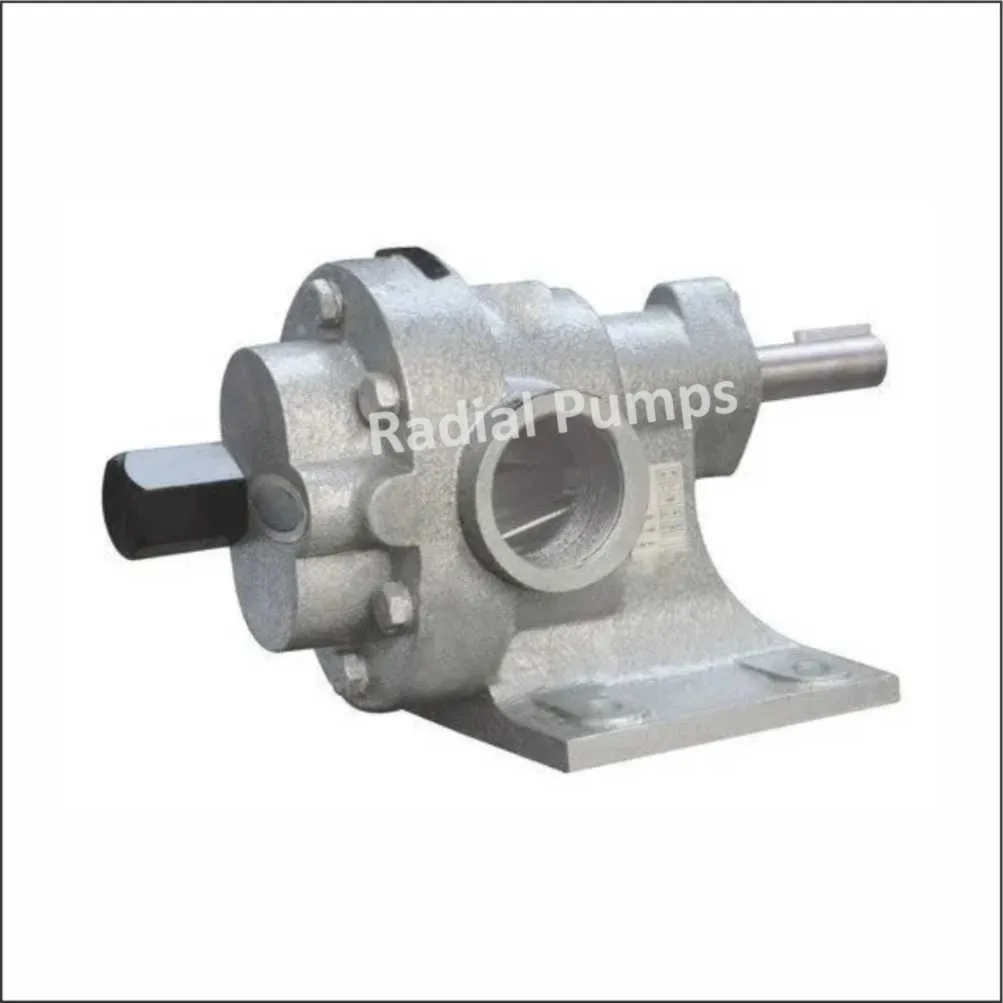

Rotary Gear Pump In Ahmedabad

Operating Range
Capacity : Up to 200 M3/hr
Head : Up to 120 mtr
Discharge Size : 12 mm to 120 mm
Temperature : Up to 200°C
Pressure : Up to 12 Kg/cm2
Speed : Up to 1440 rpm

Material of Construction
C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.
Duplex stainless steel, super duplex stainless steel

Applications
• RGP pumps are gravity suction heavy duty pumps with specially designed for the low NPSH application like Oil separator, Vacuum application, Hot oil pumping application.
• Barrels unloading.
• Large use rolling mills for picking and solvent plant.
• Pharmaceutical.
• Laminates.
• They can be used for viscous and aggressive fluids.

Features
• Compact in size, low noise, and high efficiency.
• Easy maintenance, longer life, economical.
• An inbuilt pressure relief valve.
• Bush bearing with a heavy shaft.
• Double helical gears to reduce axial thrust.
• Continuous duty.
• Handle multiple liquids.
• Unique design.
• Can be supplied bare-shaft or with IE3 motors for energy saving.
