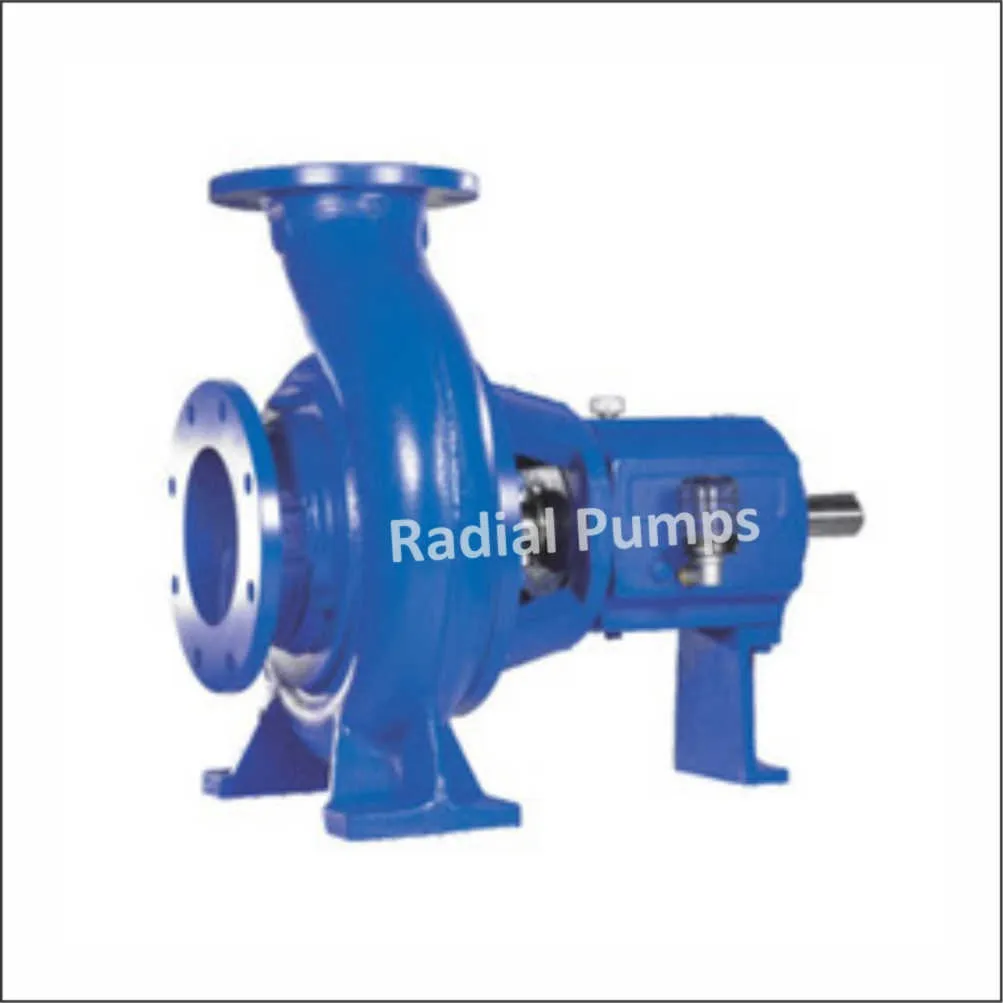

Pulp & Paper Mill Pump In Ahmedabad

Operating Range
Capacity : Up to 1000 M3/hr
Head : Up to 55 mtr
Discharge Size : 25 mm to 300 mm
Temperature : Up to 250°C
Pressure : Up to 5.5 Kg/cm2
Speed : Up to 3500 rpm

Material of Construction
C. I, C.S, SS-304 / 304L, SS316 / 316L, Bronze, Alloy-20, CD4MCU Hast alloy B & C, etc.
Duplex stainless steel, super duplex stainless steel,

Applications
• Handling pulp stock up to 7% consistency in Pulp & Paper industries.
• Handling Sugar Juice, Bagasse Slurries, Effluent, water Thin & Thick Sludge in Sugar industries.
• Organic/inorganic chemical intermediates industries.
• Waste water treatment plant (ETP/ STP), fertilizers, cement and steel industries.
• Chemicals, petrochemicals, refineries, laminates industries.
• Rubber, organic and inorganic chemical, food, salt, textiles and General industries services etc…
• Filter press- feeding, slurry transfer.

Features
• Back pull out design.
• Conforming to DIN 24256/ISO 2858 Dimensions
• High efficiency hydraulic design.
• Heavy duty shaft, sleeve and bearings.
• Low NPSH.
• Noise and maintenance free.
• Single & double mechanical seal.
• Semi open impeller provides axial balancing.
• Casing wear plate for protect the volute casing.
• Steady head and capacity.
• One roller bearing on pump end, two angular contact ball bearings.
• Grease or oil lubricated bearings.
• Several flange drilling options according to valid standards.
• Suitable with V-belt drive or direct coupled with a motor.
• Foot and centerline mounting options.
• Can be supplied bare-shaft or with IE3 motors for energy saving.
